PL Series

Industrial UPS

Transformer-based online double-conversion UPS for petrochemical, power generation and heavy process environments.

Enquire

Models
0
Rating
2.5 – 500 kVA
Reference
PL
Industrial UPS

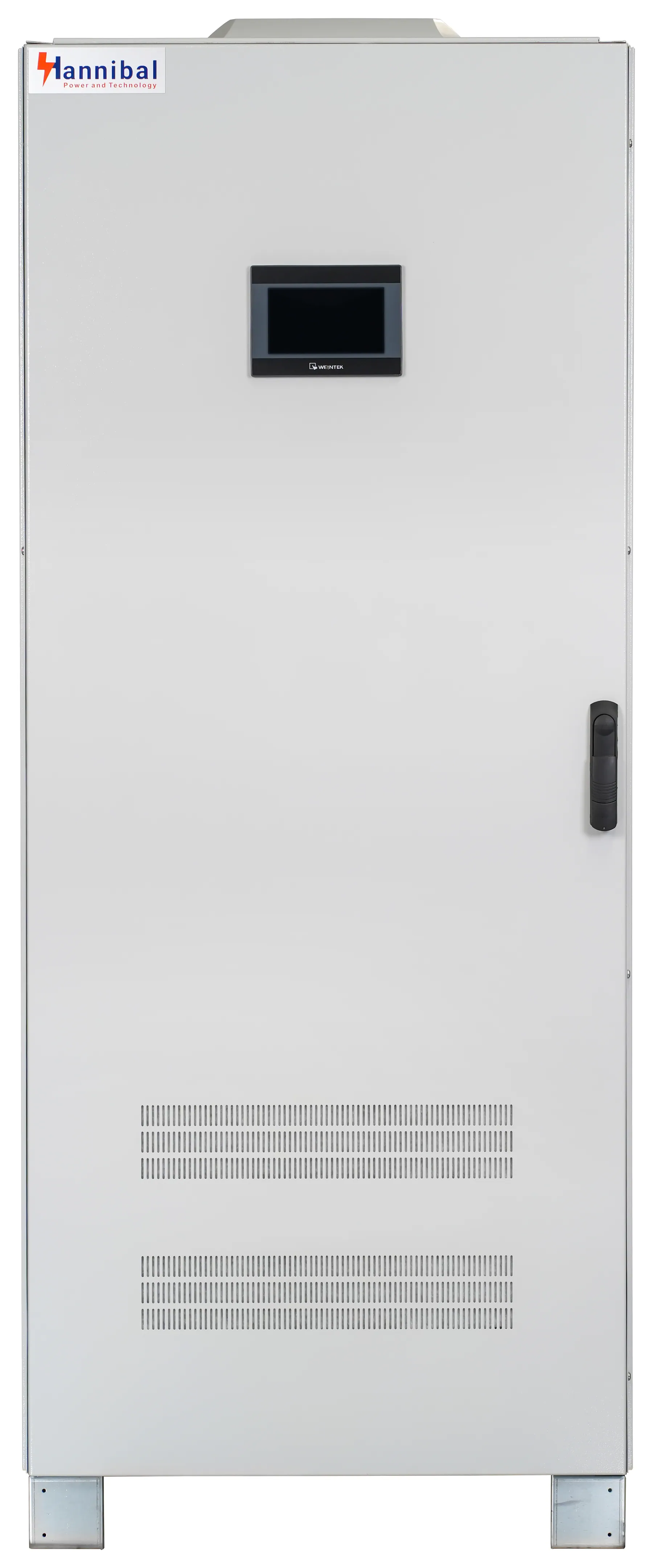

The Hannibal PL Series is an industrial UPS platform designed to provide reliable backup power, stabilize supply quality and keep critical operations running during power outages, voltage spikes, voltage drops and fluctuations.

The range is available from 2.5 to 250 kVA in single-phase output version and from 5 to 500 kVA in three-phase output version. The platform uses SCR/IGBT technology with proven digital control and can be configured with industrial options such as custom protection devices, bypass transformer, bypass stabilizer and communication solutions.

The system is designed as an industrial UPS with commonly specified features such as dual cooling channel, input and output transformers, conformal coating of printed circuit boards and halogen-free flame-retardant internal cables.

Choose your supply

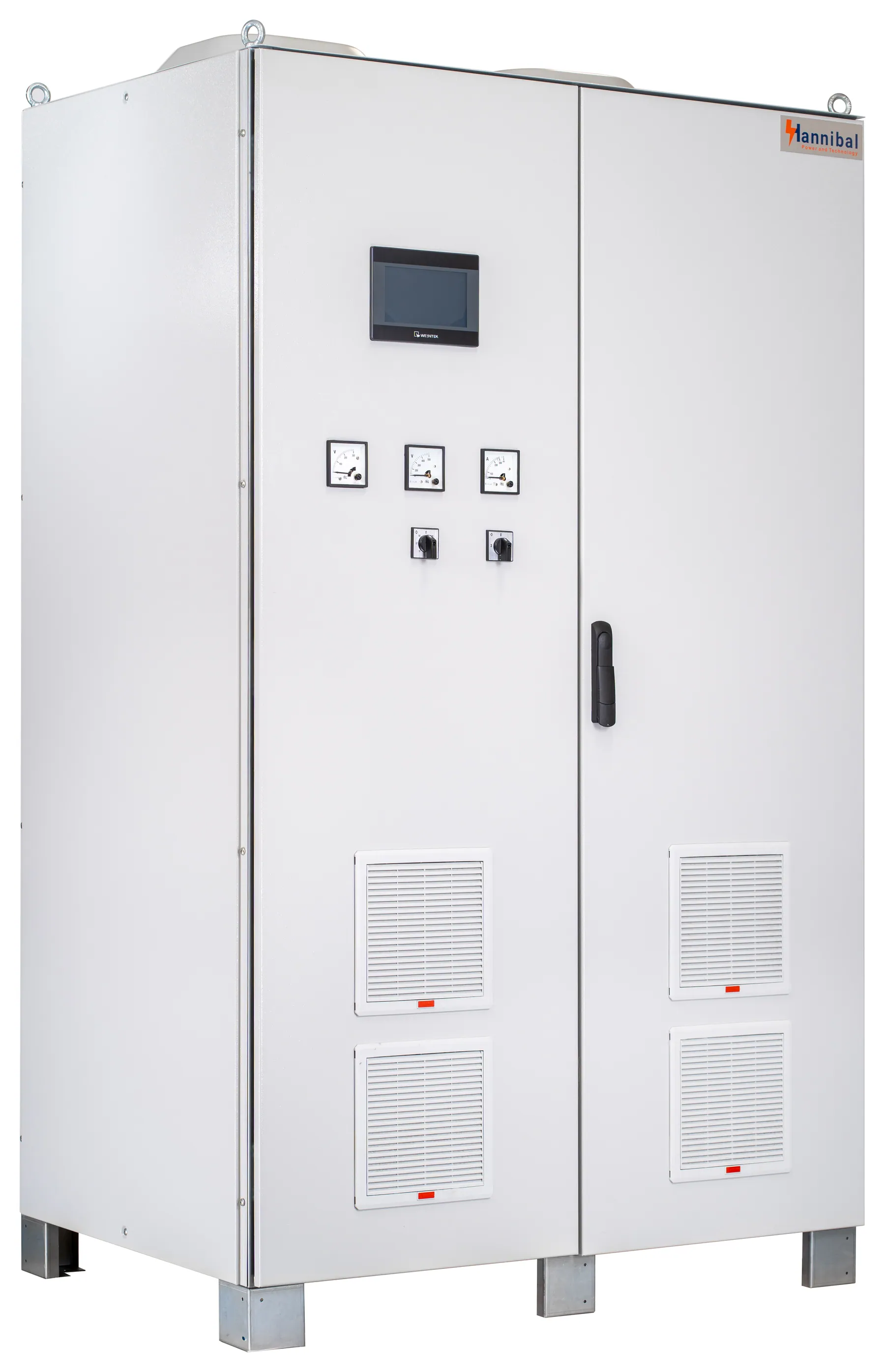

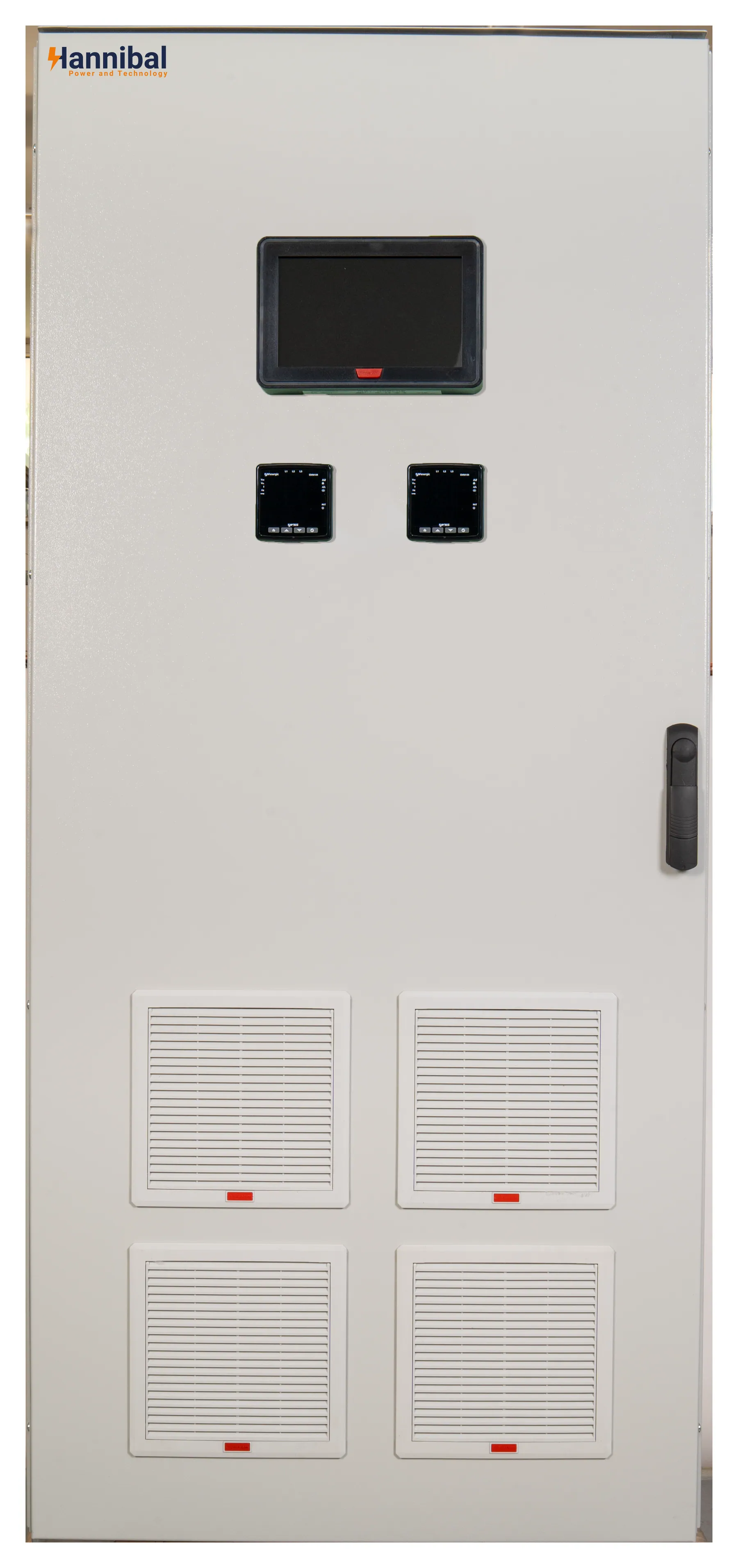

Single-phase Industrial UPSSingle-phase3 configurations · 2.5 – 250 kVAView single-phase products →Three-phase Industrial UPSThree-phase4 configurations · 5 – 500 kVAView three-phase products →
Compare all 7 configurations in one table
Single-phase3 models
2.5–50 kVAPL-1P-2.5...50KVA50–100 kVAPL-1P-50...100KVA100–250 kVAPL-1P-100...250KVA
Three-phase4 models
5–50 kVAPL-3P-5...50KVA50–100 kVAPL-3P-50...100KVA100–250 kVAPL-3P-100...250KVA250–500 kVAPL-3P-250...500KVA

Across the PL range

Options & accessories

Rectifier charger
12-pulse rectifier, IGBT rectifier, harmonic filter on 12P for THDi about 5% (+/- 1 pt), other input voltage 3 x 190 to 3 x 690 VAC, surge/lightning protection, rectifier output switch.
Battery line
Battery reversed polarity detection, battery low-voltage disconnection, DC earth fault detection, battery black start, battery room temperature sensor, battery cabinet/rack.
System
Dual distributed parallel configuration with one or two reserve lines, input/output isolators, AC distribution, AC earth fault detection/monitoring, internal cabinet lighting, anti-condensation heater, UPS cabinet temperature monitor.
Bypass line
Bypass isolators, bypass transformer H class, bypass stabilizer servo-controlled, backfeed protection, surge/lightning protection.
Communication
Front panel analogue meters, transducers 4-20mA, additional volt-free contacts, Modbus/TCP/IP, IEC 61850 protocol, monitoring software and passive/active mimic panel.
Mechanical
External ingress protection up to IP42, top cable entry, specified panel color, special feet height 200mm or 300mm, special keylock, non-magnetic gland plate and specified cabinet identification.

Standards & compliance

  1. IEC 62040-1:2017 - UPS safety requirements.
  2. IEC 62040-2:2016 - UPS electromagnetic compatibility requirements.
  3. IEC 62040-3:2011 - UPS performance and test requirements.
  4. IEC 61439-1:2011 - Low-voltage switchgear and controlgear assemblies.
  5. IEC 60529:1989 + AMD1:1999 - Degrees of protection provided by enclosures, IP Code.
  6. IEC 60076-11:2004 - Dry type transformers.
  7. Low Voltage Directive 2006/95/EC and 2014/35/EU; EMC Directive 2004/108/EC and 2014/30/EU; CE Mark.
