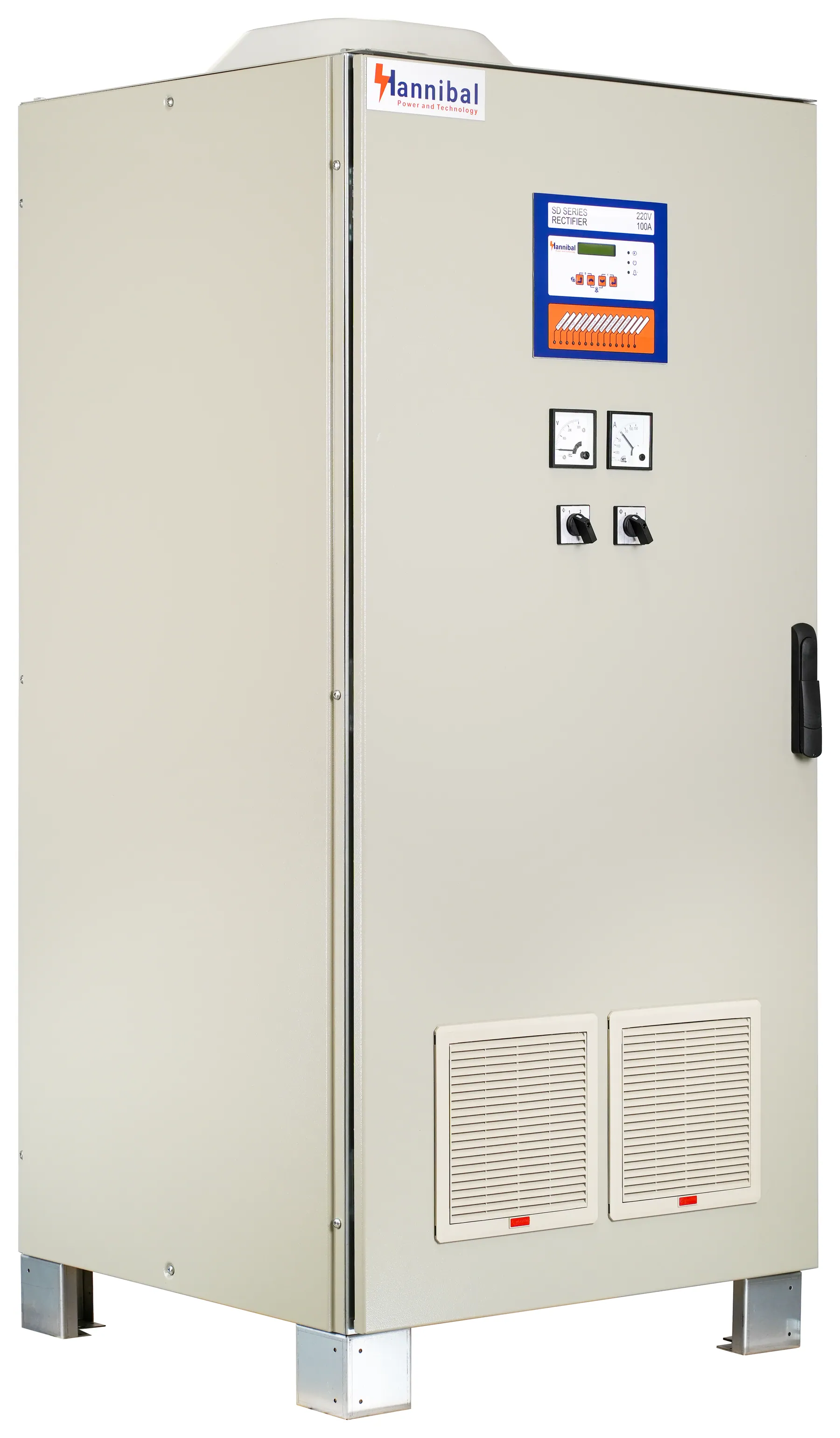

HR Series
Industrial Rectifier
Thyristor-controlled DC power supply with DSP control and galvanic isolation. Float, equalize and boost charging from 10A to 2500A.
- Models
- 0
- Rating
- 24–400 VDC · 10–2500 A
- Reference
- HR
The Hannibal HR Series is a complete family of industrial rectifiers and battery chargers that convert alternating current (AC) into clean, regulated direct current (DC) for the most demanding industrial applications. Built on a thyristor-controlled rectifier platform with fast DSP control and a galvanic isolation transformer, every HR Series unit delivers a reliable DC power supply while keeping a stand-by battery charged — protecting critical loads from the damaging effects of power interruptions and providing a true backup and uninterrupted DC supply.

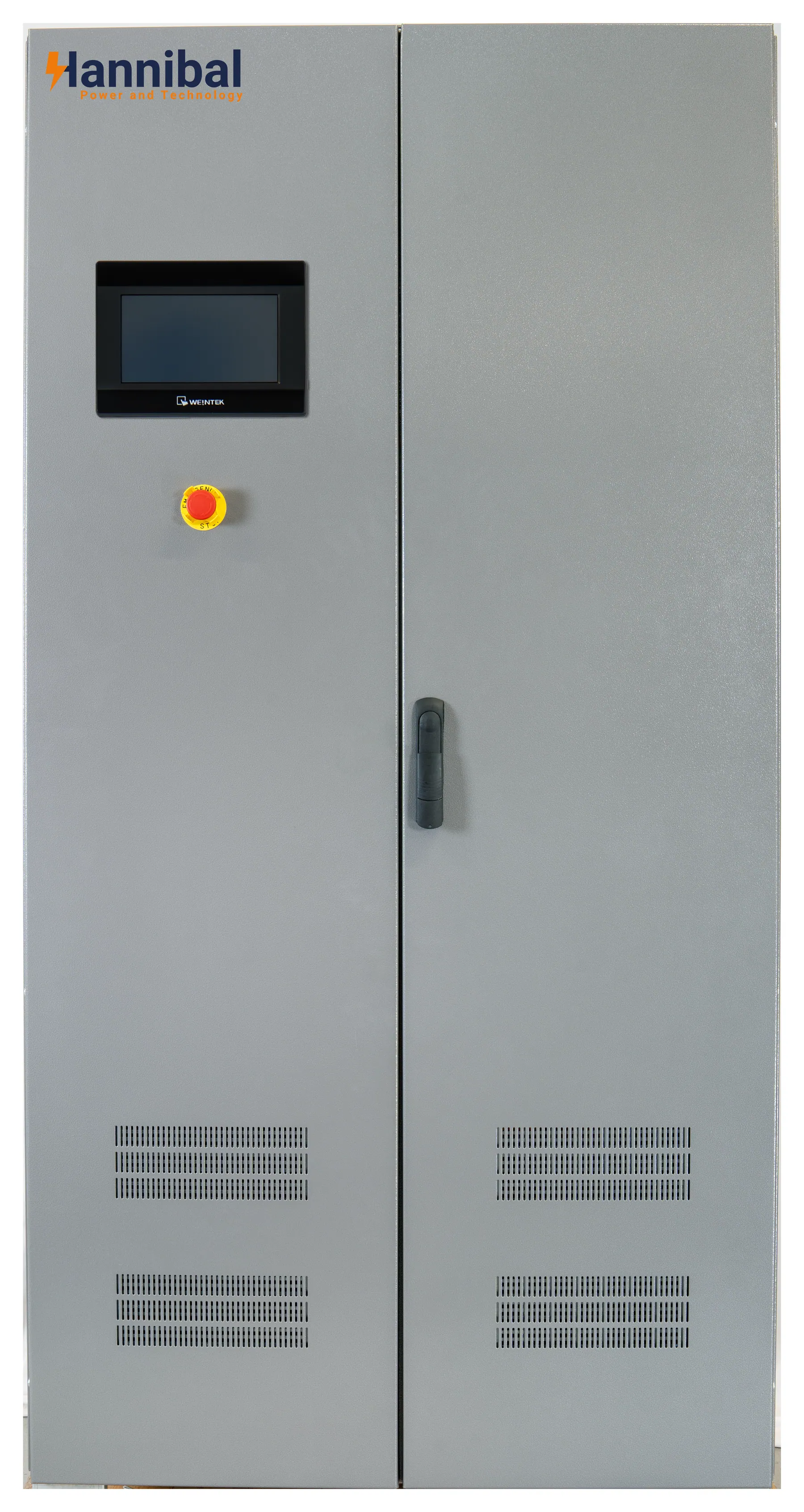

Single-phase models (HR-1P) cover 10A to 500A and three-phase models (HR-3P) extend from 10A up to 2500A, with nominal outputs of 24VDC, 48VDC, 110VDC, 125VDC, 220–240VDC and 400VDC. Across the range, voltage regulation and output ripple are held below 1%, automatic float, equalize and boost charge modes maximise battery life, and B2C / B6C / B12C (2-, 6- and 12-pulse) topologies — plus an IGBT option — let users tune total harmonic distortion (THDi) and power factor for each site.
Designed for high reliability and a long system lifetime of 20+ years, HR Series chargers operate in harsh environments and high ambient temperatures, support a wide range of maintenance-free and vented batteries (OPzS, OPzV, VRLA, Ni-Cd, Li-Ion, Calcium-Ion, Sodium-Ion, Gel, AGM, lead-acid and valve-regulated types from brands such as EnerSys and Exide), and offer comprehensive monitoring through RS232 / RS485 Modbus communication, dry contact alarm relays and a front-panel LCD display.
Choose your supply
Compare all 11 configurations in one table
Across the HR range
Common technical platform
All HR Series rectifier-chargers share a microprocessor-based DSP control platform that offers exceptional output stability and adaptability. Features common across the range include a galvanic isolation transformer, thyristor or IGBT power conversion, float / boost / equalize charging, adjustable current limiting, voltage regulation < 1%, output ripple < 1%, ripple suppression, soft start, and operation as either a voltage source or a current source with constant-current operation under load.
Input AC voltage options cover 110V to 440V in single-phase (1P) and three-phase (3P) configurations at 50 or 60 Hz, with an input voltage tolerance of +15% / -10% and frequency tolerance of ±10%. Nominal power factor is typically 0.75 / 0.80 (1P / 3P) and can reach 0.9 to 0.99 with the appropriate front end. The range supports dual DC UPS / dual battery charger and DC load sharing configurations, and can be supplied as AC-DC converter or DC-DC converter solutions, including the front end of double-conversion AC UPS systems up to 500 kVA.
Protection, monitoring & interface
- Short-circuit protection, over-temperature protection, earth leakage monitoring (OPS-02) and battery reverse-polarity / low-voltage disconnection.
- Front-panel interface with LCD display, keypad and menu navigation, measured-values display, analog gauges and indicators (OPS-04) and LED indicators with an audible alarm.
- Alarm logging with date and time-stamped event history, energy monitoring and input power measurement (OPS-09).
- Automatic startup / restart after fault, smart fault diagnosing, boost duration and charge timing control, programmable operation parameters and calibration functions.
- Fan failure monitoring (OPS-15), battery test with adjustable voltage and time, and battery temperature compensation (OPS-06).
- RS232 / RS485 communication, Modbus protocol (RTU), Modbus / TCP-IP, CANBUS for current sharing, dry contact alarm relays and transducers 0–10V / 4–20mA (OPS-11).
- Emergency stop, equipment label with model info and serial number, user manual, setup & installation guidance and clearly defined spare parts for service and support.
Battery compatibility
HR Series chargers are fully compatible with sealed and vented batteries across all major chemistries, with intelligent battery management and temperature compensation to extend service life:
- Maintenance-free and vented: OPzS, OPzV, VRLA (valve-regulated), Gel and AGM lead-acid.
- Nickel-Cadmium (Ni-Cd) — vented and recombination types.
- Lithium-Ion (Li-Ion), Calcium-Ion and Sodium-Ion advanced chemistries.
- Battery monitoring system (Hannibal BMS), DC earth fault detection and battery room temperature sensor options.
- Compatible with leading battery brands including EnerSys and Exide.
Options & accessories
- Alarm & communication interface
- Earth leakage monitoring
- Gauges for analog measurements.
- Output breaker / load dropper module
- Battery temperature compensation
- Input power measurement.
- Transducers (0–10V, 4–20mA)
- Active parallel current sharing
- Fast-acting semiconductor fuses
- Fan failure monitoring.
- 12-pulse operation option, IGBT rectifier, harmonic filter, DC shock / DC filter and one-to-four-step dropper diode voltage regulation.
- Outdoor equipment and ingress protection: IP42, IP54, IP55 and IP65, with altitude operation up to 2000m and natural cooling on request.
- H2S gas compensation for geothermal power plants and the petrochemical industry; anti-seismic design for high-vibration sites.
Standards & compliance
- IEC 60146-1-1 / IEC/NF EN 60146-1-1 — Semiconductor converters (basic requirements).
- IEC 61204-1, IEC 62040-2 (EMC), IEC 60335 — power supply and safety standards.
- ISO 9001, ISO 14001, ISO 27001 management system certifications.
- CE marked, compliant with EMC and Low Voltage directives.
- Total harmonic distortion (THDi) controlled via 6-pulse, 12-pulse and IGBT topologies; harmonic filter available.
